Compound Turbo System
Simplify your Turbo System.
10 minute assembly
Troubleshooting turbo issues? Remove your turbo system in 10 minutes rather than 3+ hours. Change your turbo without ruining your weekend.
Modular and Universal
Remove and install your entire system from one lift point. Opens up a world of possibilities. Have a spare on hand or test a different setup - up to you.
Increased Power
Turbo connections were designed using Computational Fluid Design, providing increased airflow and keeping intake air cooler for more power.
A radical innovation in turbo assembly and performance.

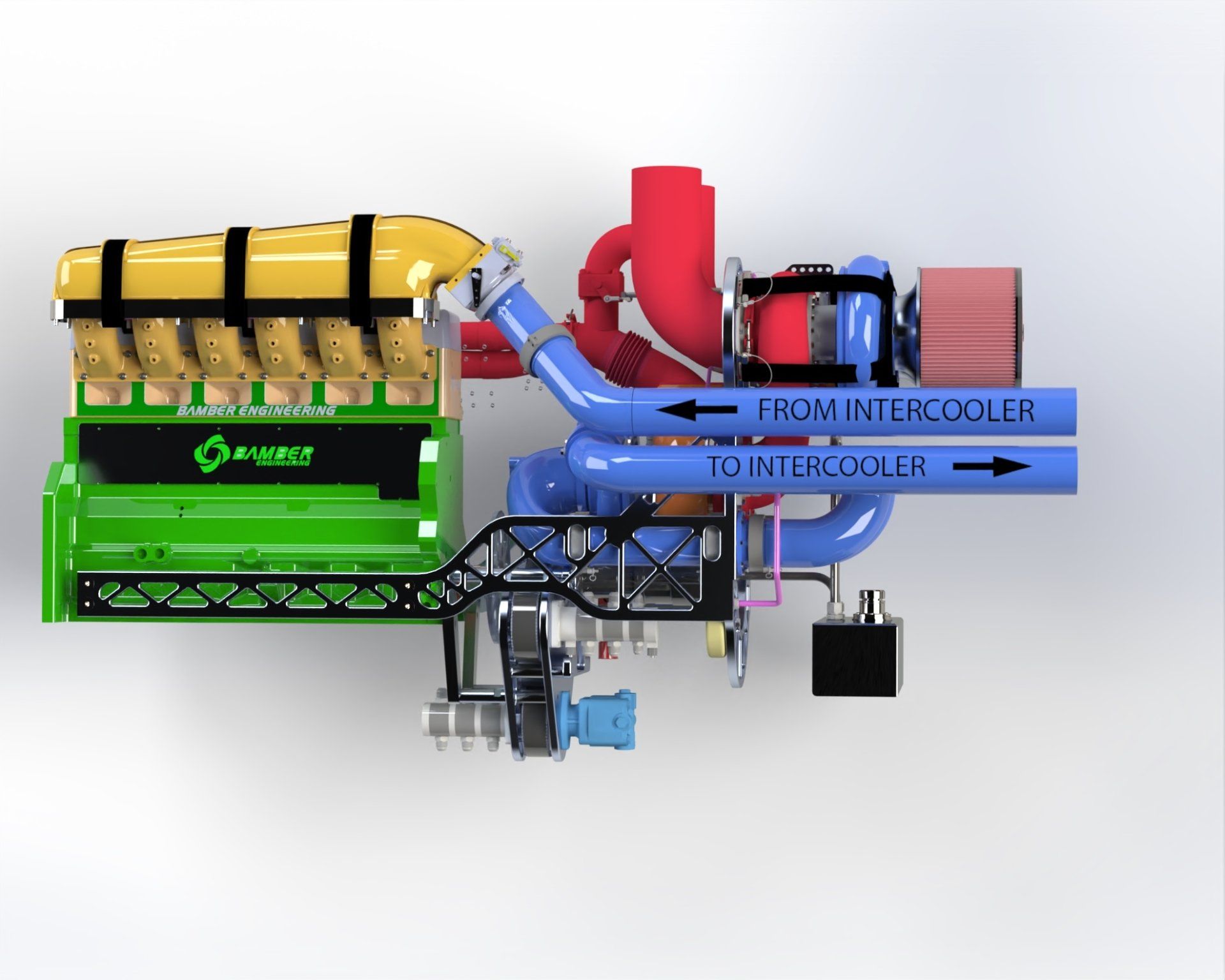

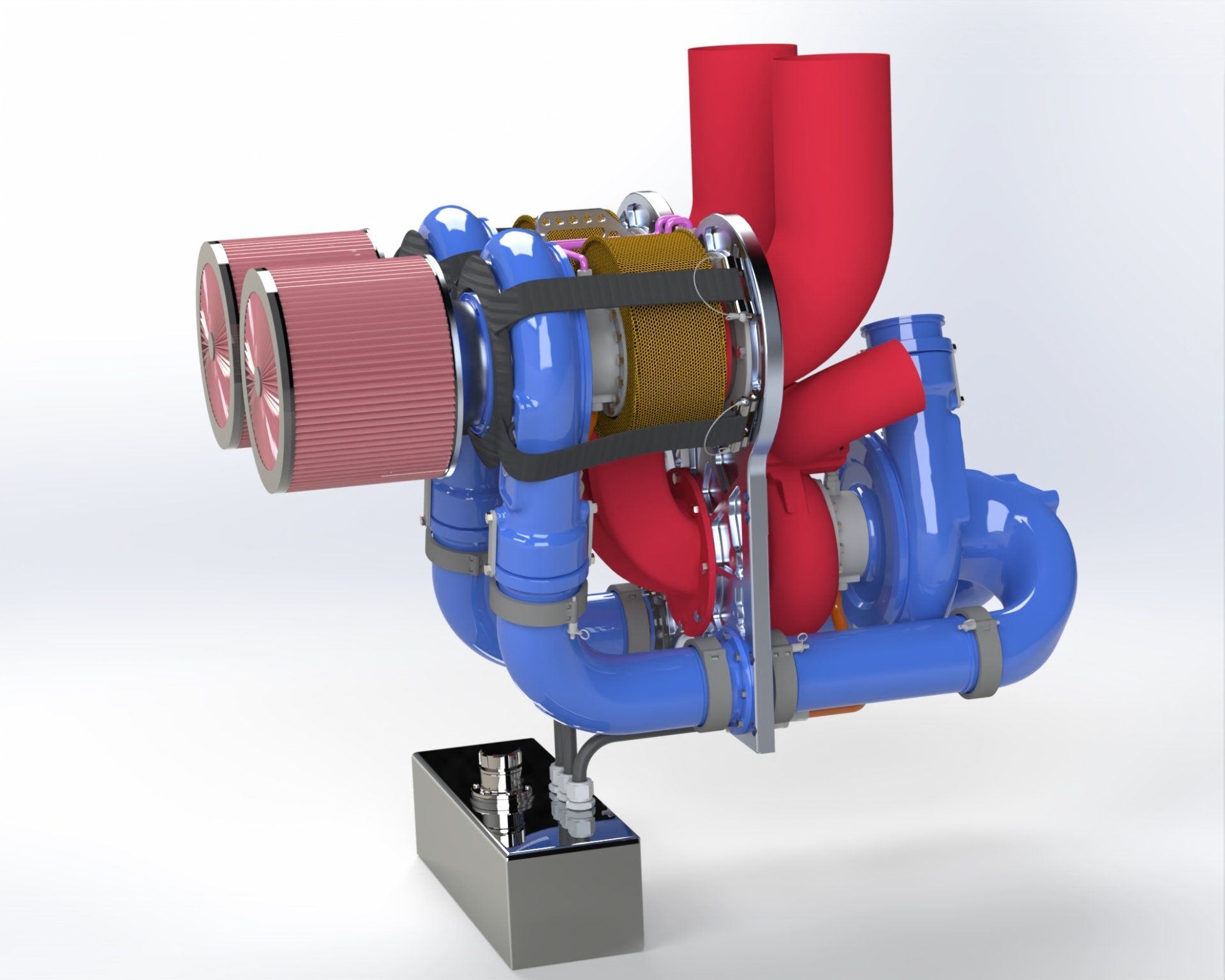

Our compound turbo system was designed to deal with the frustrating problems we have all experienced with mounting and changing turbos. The modular design means a super fast assembly time, modular compatibility, and improved performance.
Implementation and Features
- Simplify builds - Fits in a 26 ½” wide hood and height is adjustable. CTS provides mounting and connection between turbos.
- Accommodates exhaust and intake on either side of the engine. Builder only has to connect CTS to the engine - we can provide engine connection plumbing as well. We only need location information
- Universal - use any combination of brand or size turbos. This allows customers to easily change turbo combinations. Turbo specific fittings may be required.
- Accommodates either valve or butterfly type wastegates.
- Gun-drilled internal supply oil passage simplifies oil distribution.
- Stainless steel oil lines - CNC bent for cleaner installation and perfect fit.
- Integrated expansion joints and bellows to protect pipes, turbo housings as well as intake and exhaust manifolds from stress.
- Durable - turbos properly mounted to withstand drop shock, and the weakest element in the boost system is the Wiggins type couplers and they are rated to 250 psi of boost
- Safety - latest SFI restraint system integrated
Performance
- Lightest and most compact turbo system on the market.
- Best airflow and performance - connections to and between turbos were designed using our airflow expertise (which includes Computation Fluid Design). Benefit realized by customers will be cooler air with less exhaust pressure - either will lead to big performance gain.
- Design provides separation of hot and cold areas, which reduces undesirable heating of intake air.
Quick Problem Solving
- Modular - can install or remove the entire system using a single lifting point. The entire turbo system can be removed from the tractor in less than 10 minutes.
- Quick and easy turbo system removal simplifies engine repairs by clearing the space in front of the engine. Simplifies camshaft removal/installation.
- Change any turbo without touching another turbo in less than 10 minutes.
Options
- high flow air filter and or turbo inducers
- Complete turbo system with state of the art turbos
- Machine existing covers for v-band flanges and socket outlets
- Blankets to insulate exhaust housings - improves turbo performance and reduces under hood temperature
- Shield / hood - intended for use on mod tractors
- Engine mounting system available
